CP2102 Converter USB to Serial UART BRD34 ,R25

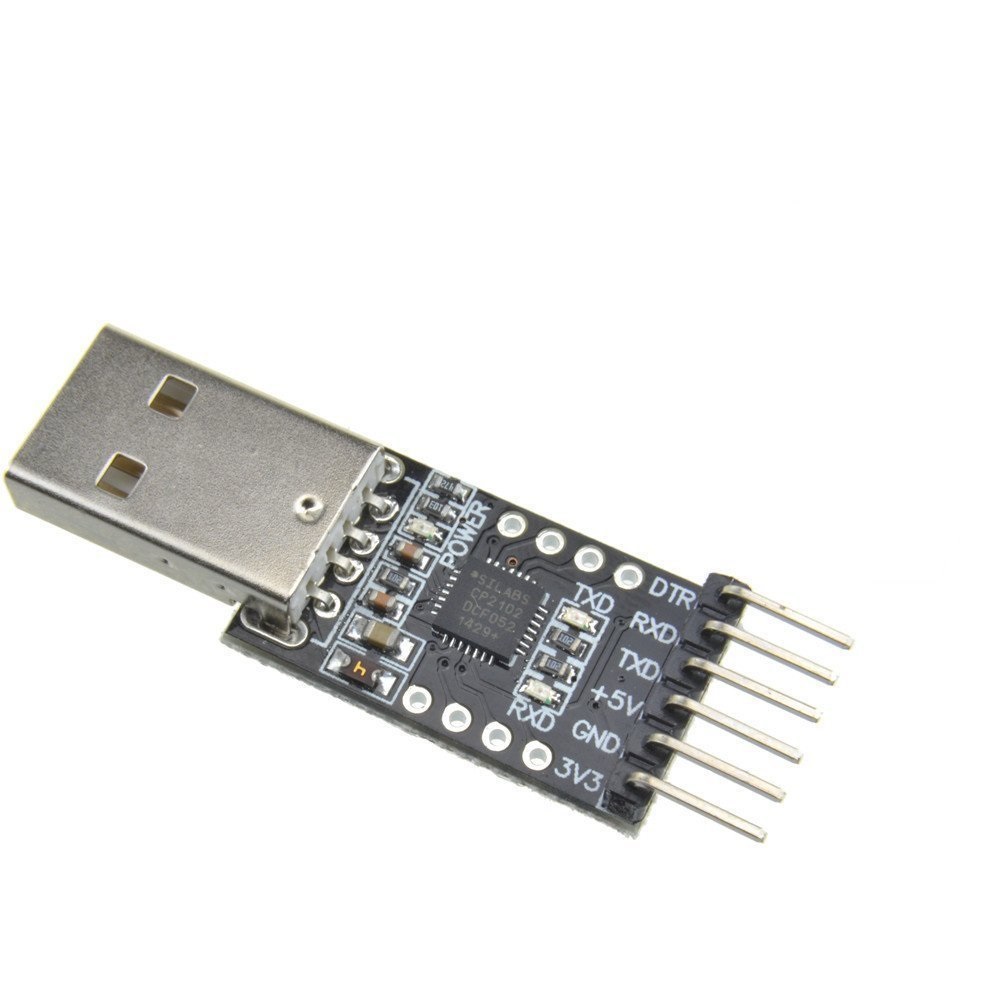

DescriptionEvery embedded systems developer needs a reliable way to communicate with their hardware. Whether you are sending raw AT commands from your PC terminal to test an industrial cellular module, or flashing fresh firmware onto a custom ESP32 edge-computing node, the CP2102 USB to TTL Converter is the tool that makes it happen.Unlike notoriously finicky serial chips that suffer from driver crashes or counterfeit lockouts, the Silicon Labs CP2102 architecture is globally recognized for its rock-solid stability across Windows, Mac, and Linux operating systems.The DTR Pin Advantage (Auto-Reset)Look closely at the 6-pin header. Alongside the standard power and data lines, you will see a pin labeled DTR (Data Terminal Ready). This pin is what makes this specific module perfect for the Arduino IDE and Espressif toolchains. When you hit “Upload” in your software, the IDE sends a pulse to the DTR pin. If you connect this pin to the reset line of your ATmega328P or ESP32 (usually via a small 0.1µF capacitor), it automatically reboots the chip into bootloader mode. Without a DTR pin, you would be forced to manually press a physical reset button on your board with precise timing every single time you wanted to upload code.3.3V and 5V Dual CompatibilityModern electronics are split between two logic levels. Pushing a 5V data signal into a delicate 3.3V cellular module or GPS chip will instantly destroy it. This CP2102 module features an integrated voltage regulator, breaking out both 3V3 and 5V power pins. It safely reads and writes logic levels for both standards, allowing you to interface with legacy 5V sensors and modern 3.3V IoT silicon using the exact same tool.Crucial Wiring Rule (RX to TX)When wiring this module to your microcontroller or sensor, remember that serial communication lines must always cross over:Connect the TXD (Transmit) pin on the CP2102 to the RX (Receive) pin on your device.Connect the RXD (Receive) pin on the CP2102 to the TX (Transmit) pin on your device.Always ensure both devices share a common GND connection.Key Features:Driver Stability: Natively supported by most modern operating systems without requiring hunting for obscure, unsigned drivers.Status LEDs: Features tiny onboard SMD LEDs that blink rapidly during data transmission, giving you immediate visual confirmation that data is flowing.Compact Form Factor: The USB Type-A connector plugs directly into your laptop or a USB extension cable without adding bulky adapter boxes to your workbench.Technical Specifications:USB Controller: Silicon Labs CP2102Host Interface: USB 2.0 (Full Speed, 12 Mbps)Device Interface: UART (TTL logic)Baud Rate Range: 300 bps to 1 MbpsData Formats: Data bits (5, 6, 7, 8), Stop bits (1, 1.5, 2), Parity (odd, even, mark, space, no parity)Output Voltages: 5V DC and 3.3V DC (drawn from USB host)Pinout: 3V3, GND, RXD, TXD, 5V, DTRIdeal Applications:Programming custom bare-bones Arduino (ATmega) and ESP32/ESP8266 PCBsSending AT commands directly from a PC to GSM/LTE/NB-IoT cellular modulesReading raw serial debug output from headless Linux servers or routersInterfacing with GPS modules and Bluetooth transceivers via serial terminal
