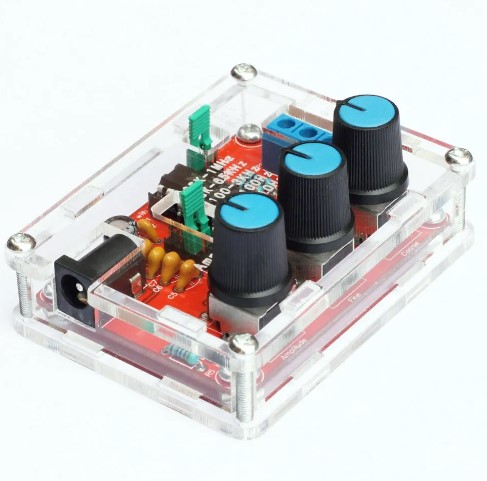

XR2206 Multi-Function Generator COM44 R26

DescriptionX2206 monolithic integration function generator generates high quality, high stability, high precision sine wave, square wave and triangular wave, can realize frequency modulation and amplitude modulation, suitable for circuits such as waveform generation, Scan production AM/FM generation, FSK generation, and a phase-locked loop.Soldering steps:1. The components on top of the board, from low to high principles, namely the first low soldering components, such as a capacitor, resistor, diode, etc. 2. Soldering IC socket, terminal blocks, finally power socket, an adjustable potentiometer. 3. The back with diagonal cutting pliers to cut short the pins as far as possible.FeatureIt can generate 3 stable waveforms including sine wave, square wave, and triangular waveFrequency adjustable from 1Hz~1MHz with fine tune and coarse tuneAmplitude tunabSpecificationVoltage Supply: 9-12V DC InputWaveforms: Square, Sine & TriangleImpedance: 600 Ohm 10%Frequency: 1Hz-1MHzscrewdriver length: 100MM SINE WAVEAmplitude: 0-3V at 9V DC Input Distortion: Less than 1% (at 1KHz) Flatness: 0.05dB 1Hz – 100kHzSQUARE WAVEAmplitude: 8V (without load) at 9V DC InputRise Time: Less than 50ns (at 1KHz)Fall Time: Less than 30ns (at 1KHz)Symmetry: Less than 5% (at 1KHz)TRIANGLE WAVEAmplitude: 0-3V at 9V DC InputLinearity: Less than 1% (up to 100KHz) 10mAQuick Start GuideHere we introduce how to generate sine wave in a simple way:Step1: Short J1 Jumper. Step2: Short 1 of the 5 jumper caps on frequency range selection area.Step3: Power on, then SIN/TRI port generates sine waveStep4: Spin Potentiometer Amp, you can tune amplitudeStep5: Spin Potentiometer Fine, you can fine tune signal frequencyStep6: Spin Potentiometer Coarse, you can coarse tune signal frequencyNoteThe board takes 9-12V DC power supply, cannot exceed 12V!After completion of soldering on IC, XR2206, pay attention to the direction of IC, insert in reverse might damage the chip!Soldering IC socket, terminal blocks, finally power socket, an adjustable potentiometer.Trim the components legs as short as possible to avoid short circuit.Package includes: 1×Signal Generator DIY kit 1× User Manual(English)
